Bipedal Walker Evo

This project tries to solve OpenAI's bipedal walker using three different ways: Q-Learning, Mutation of Actions and Evolution Strategies.

Q-Learning

❌ Will get a reward of -64. But instead of spreading it's legs the walker tries to fall on its head in a slow motion.
At least the walker learns slow down his fall.

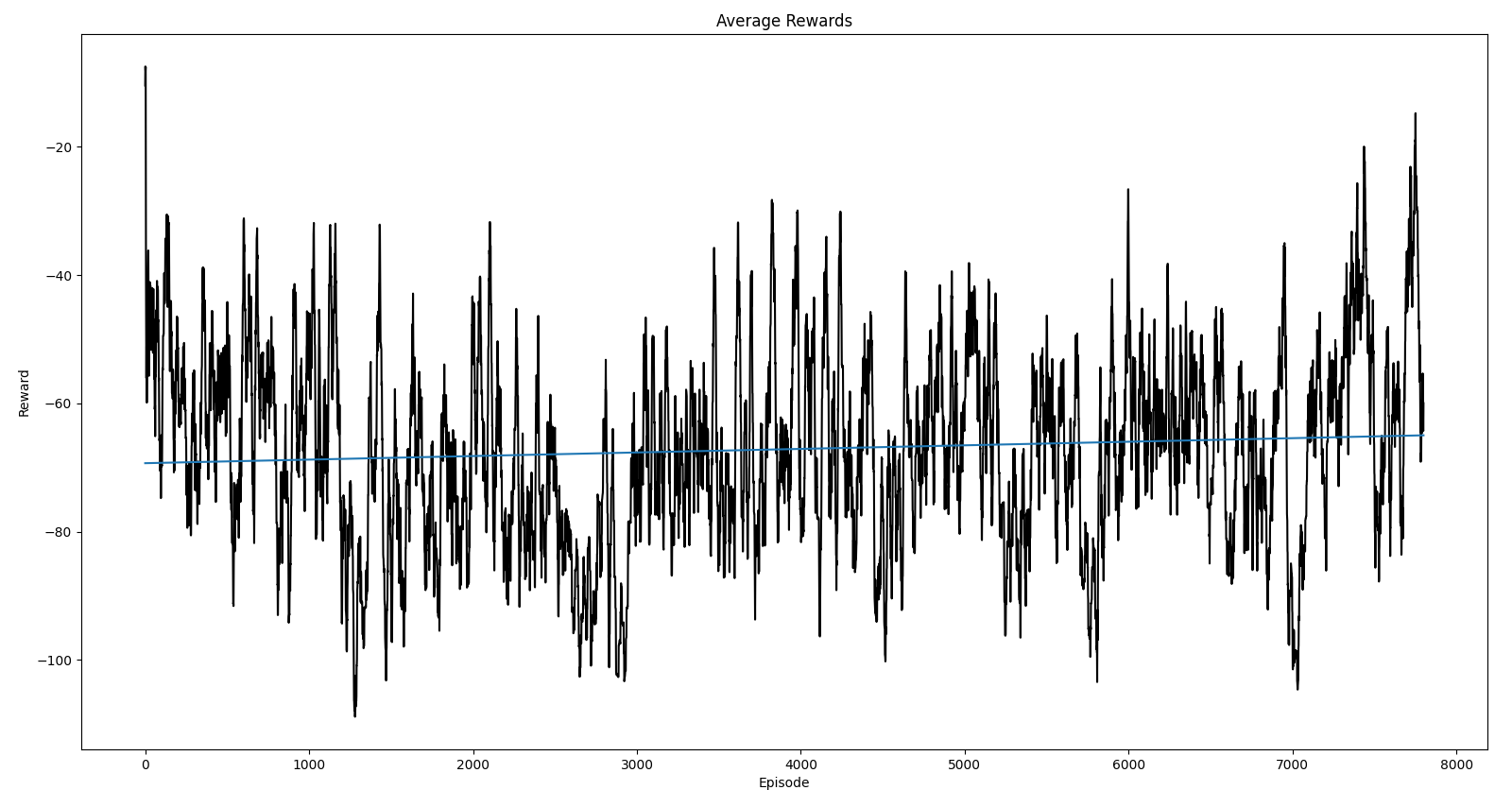

Average Rewards while learning

How it works

  1. Choose action based on Q-Function
  2. Execute chosen action or explore
  3. Save state, action, reward, next state to memory
  4. Create batch with random memories
  5. Update Q-Function

Hyperparameters

Parameter Description Interval Our Choice
activation funtion Activation function of input and hidden layers. ReLU
gamma Importance of future rewards. [0;1] 0.99
alpha Learning rate of Q-Function. [0;1] 0.1
epsilon_init Percentage of random actions for exploration at the start. [0;1] 1
epsilon_low Percentage of random actions for exploration at the end. [0;1] 0.05
epsilon_decrease Decrease of exploration rate per epoch. [0;1] 0.999
bins Discretization bins of action space. [0;∞[ 7
episodes Episodes per epoch. [0;∞[ 1
epochs_max Maximum amount of epochs. [0;∞[ 10,000
batchsize Batchsize for learning. [0;∞[ 16
memorysize Size of the memory. It's a ring buffer. [0;∞[ 25,000
network architecture Architecture of hidden layers. [0;∞[² [24, 24]
optimizer Optimizer of the neural net. Adam
learning rate Learning rate of the neural net. [0;1] 0.001
loss Loss function of the neural net. mse

Action Mutation

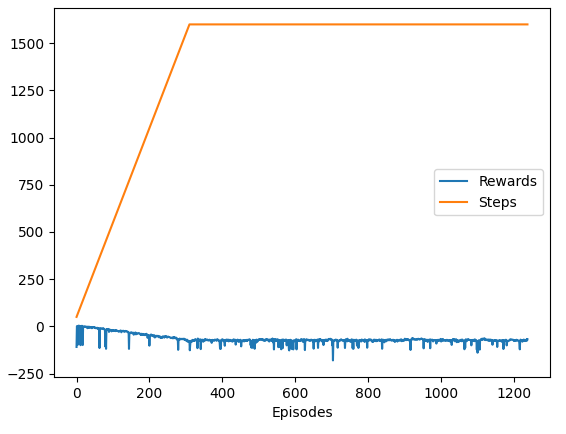

❌ Will get 0 reward, which is basically learning to prevent falling on it's head. The more actions the walker can use, the worse the reward. This is because the walker tries to generate movement by trembling with it's legs. The covered distance doesn't cover the punishment for doing actions. So after 1600 moves the walker will get a reward around -60. Rewards while learning

How it works

  1. Generate a population with a starting number randomized actions (we don't need enough actions to solve the problem right now)
  2. Let the population play the game reward every walker of the generation accordingly
  3. The best walker survives without mutating
  4. The better the reward the higher the chance to pass actions to next generation. Each child has a single parent, no crossover.
  5. Mutate all children and increment their number of actions

Hyperparameters

Parameter Description Interval Our Choice
POP_SIZE Size of population. [0;∞[ 50
MUTATION_FACTOR Percentage of actions that will be mutated for each walker. [0;1] 0.2
BRAIN_SIZE Number of actions in the first generation. [0;1600] 50
INCREASE BY Incrementation of steps for each episode. [0;∞[ 5
GENS Number of generations. [0;∞[ 2000

Evolution Strategies

After 1000 episodes, which is about 1h of learning, it will reach ~250 reward.
✅ Best score until now: 304/300 in under 7000 episodes with a decaying learning rate and mutation factor.

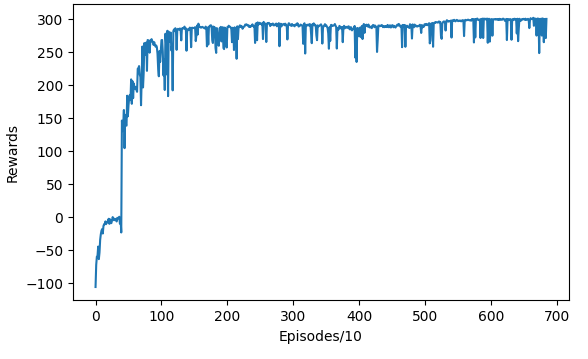

Learning curve:
Rewards while learning

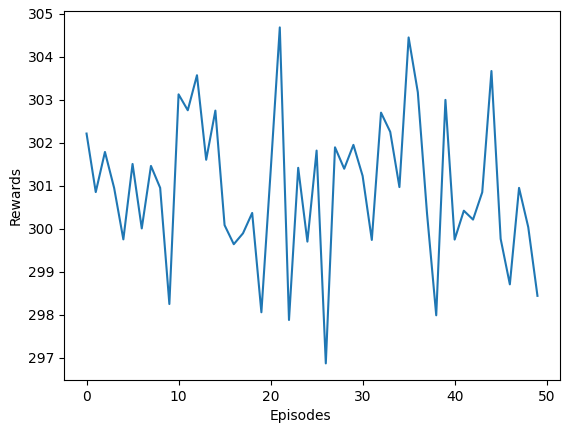

Rewards of fully learned agent in 50 episodes:
Rewards 50 Episodes

How it works

  1. Generate a randomly weighted neural net
  2. Create a population of neural nets with mutated weights
  3. Let every net finish an episode and reward it accordingly
  4. The better the reward, the higher the chance to pass weights to next gen

Also: Decay alpha and sigma to 0.05 after 1000 gens and 0.01 after 5000 gens for a more precise learning after passing the local extrmum that is standing around.

Hyperparameters

Parameter Description Interval Our Choice
HIDDEN_LAYER Size of hidden layer. [1;∞[ 12
BIAS Add a bias neuron to the input layer. {0,1} 0
POP_SIZE Size of population. [0;∞[ 50
MUTATION_FACTOR Percentage of weights that will be mutated for each mutant. [0;1] 0.1
LEARNING_RATE This is the rate of learning. [0;1] 0.1
GENS Number of generations. [0;∞[ 2000
MAX_STEPS Number of steps that are played in one episode. [0; 1600] 300

Installation

We use Windows, Anaconda and Python 3.7
conda create -n evo_neuro python=3.7
conda activate evo_neuro
conda install swig
pip install -r requirements.txt

Important Sources

Environment: https://github.com/openai/gym/wiki/BipedalWalker-v2
Table of all Environments: https://github.com/openai/gym/wiki/Table-of-environments
OpenAI Website: https://gym.openai.com/envs/BipedalWalker-v2/
More on evolution strategies: https://openai.com/blog/evolution-strategies/
