    README.md

    Bipedal Walker Evo

    This project tries to solve OpenAI's bipedal walker using three different ways: Q-Learning, Mutation of Actions and Evolution Strategies.

    Q-Learning

    Coming soon

    Action Mutation

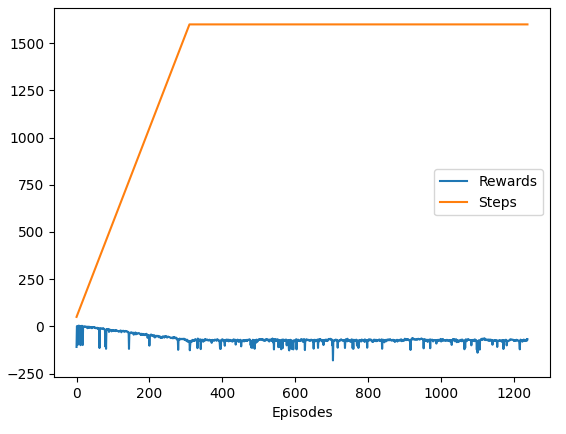

    ❌ Will get 0 reward, which is basically learning to prevent falling on it's head. The more actions the walker can use, the worse the reward. This is because the walker tries to generate movement by trembling with it's legs. The covered distance doesn't cover the punishment for doing actions. So after 1600 moves the walker will get a reward around -60. Reward

    How it works

    1. Generate a population with a starting number randomized actions (we don't need enough actions to solve the problem right now)
    2. Let the population play the game reward every walker of the generation accordingly
    3. The best walker survives without mutating
    4. The better the reward the higher the chance to pass actions to next generation. Each child has a single parent, no crossover.
    5. Mutate all children and increment their number of actions

    Hyperparameters

    Parameter Description Interval Our Choice
    POP_SIZE Size of population. [0;∞[ 50
    MUTATION_FACTOR Percentage of actions that will be mutated for each walker. [0;1] 0.2
    BRAIN_SIZE Number of actions in the first generation. [0;1600] 50
    INCREASE BY Incrementation of steps for each episode. [0;∞[ 5

    Evolution Strategies

    After 1000 episodes, which is about 1h of learning, it will reach ~250 reward.

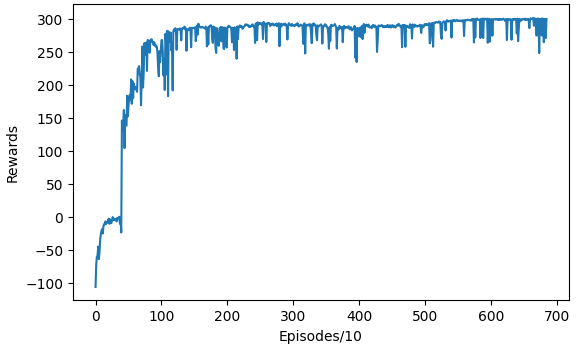

    ✅ Best score until now: 304/300 in under 7000 episodes with a decaying learning rate and mutation factor.
    Reward

    How it works

    1. Generate a randomly weighted neural net
    2. Create a population of neural nets with mutated weights
    3. Let every net finish an episode and reward it accordingly
    4. The better the reward, the higher the chance to pass weights to next gen

    Hyperparameters

    Parameter Description Interval Our Choice
    HIDDEN_LAYER Size of hidden layer. [1;∞[ 12
    BIAS Add a bias neuron to the input layer. {0,1} 0
    POP_SIZE Size of population. [0;∞[ 50
    MUTATION_FACTOR Percentage of weights that will be mutated for each mutant. [0;1] 0.1
    LEARNING_RATE This is the rate of learning. [0;1] 0.03
    GENS Number of generations. [0;∞[ 2000
    MAX_STEPS Number of steps that are played in one episode. [0; 1600] 300

    Installation

    We use Windows, Anaconda and Python 3.7
    conda create -n evo_neuro python=3.7
    conda activate evo_neuro
    conda install swig
    pip install -r requirements.txt

    Important Sources

    Environment: https://github.com/openai/gym/wiki/BipedalWalker-v2
    Table of all Environments: https://github.com/openai/gym/wiki/Table-of-environments
    OpenAI Website: https://gym.openai.com/envs/BipedalWalker-v2/
    More on evolution strategies: https://openai.com/blog/evolution-strategies/
